Load capacity 载荷特性

m		2.5~13.1	15	17	20	23	25	30	35	40	45	50	55	60
T	a=4	10	8.55	7.39	6.1	5.15	4.66	3.71	3.05	2.55	2.16	1.86	1.6	1.4
	a=2	5					4.76	3.81	3.15	2.65	2.26	1.96	1.7	1.5

m		2.5~14	16	18	20	25	27	30	35	40	45	50	55
T	a=4	10	8.62	7.51	6.64	5.09	4.63	4.07	3.35	2.81	2.39	2.06	1.8
	a=2	5					4.73	4.17	3.45	2.91	2.49	2.16	1.9

m		2.5~14.7	16	18	20	25	27	30	35	40	45	50
T	a=4	10	9.04	7.88	6.98	5.36	4.88	4.29	3.54	2.98	2.54	2.2
	a=2	5					4.98	4.39	3.64	3.08	2.64	2.3

m		2.5~14.9	16	18	20	25	27	30	35	40	45
T	a=4	10	9.21	8.04	7.11	5.46	4.98	4.38	3.61	3.04	2.6
	a=2	5						4.48	3.71	3.14	, 2.7, , ,

m		2.5~15.1	17	20	25	27	30	35	40
T	a=4	10	8.73	7.23	5.55	5.06	4.46	3.68	3.1
	a=2	5					4.56	3.78	3.2

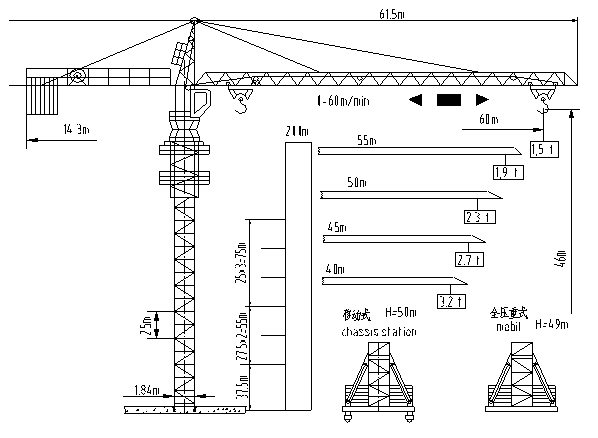

Foundation+ 1st mast
JIB		60m	60m	60m
MAST heights	0	0.32	1.17	2.17
	1	2.82	3.67	4.67
	2	5.32	6.17	7.17
	3	7.82	8.67	9.67
	4	10.32	11.17	12.17
	5	12.82	13.67	14.67
	6	15.32	16.17	17.17
	7	17.82	18.67	19.67
	8	20.32	21.17	22.17
	9	22.82	23.67	24.67
	10	25.32	26.17	27.17
	11	27.82	28.67	29.67
	12	30.32	31.17	32.17
	13	32.82	33.67	34.67
	14	35.32	36.17	37.17
	15	37.82	38.67	3.67
	16	40.32	41.17	42.17
	17	42.82	43.67	44.67
	18	45.32	46.17	47.17



c	QTY	DESCRIPTION	LENGTH (M)	WIDTH (M)	HIGH (M)	UNIT WEIGHT (Kg)	TOTLE WEIGHT (Kg)
1	4	FOUNDATION ANCHOR	1.20	0.3	0.3	100.7	402.8
2	18	MAST	2.5	1.97	1.97	1330	23940
3	1	TELESCOPIC CAGE	5.9	2.4	2.4		3866
4	1	TURN TABLE	1.55	2.5	2.5		4760
5	1	Slewing MAST	2.185	1.72	1.65		1140
6	1	Cathead	7.5	1.59			2140
7	1	COUNTER JIB	13.55	1.55	0.56		4217
8	1	JIB(1)	6.68	1.486	1.395		730
9	1	JIB(2)	6.69	1.486	1.395		765
10	1	JIB(3)	6.69	1.486	1.395		695
11	1	JIB(4)	6.69	1.486	1.395		590
12	1	JIB(5)	6.69	1.486	1.385		813
13	1	JIB(6)	5.1	1.486	1.385		380
14	1	JIB(7)	6.69	1.486	1.395		503
15	3	JIB(8,9,10)	5.09	1.486	1.395	354	1062
16	1	JIB(11)	2.025	1.494	1.465		101
17	1	Hook	0.98	0.21	1.266		333
18	5	COUNTER BALLAST	1.25	0.45	2.5	3240	16150
19	2	COUNTER BALLAST	1.25	0.192	2.5	1400	2800
20	1	JIBTROLLEY	1.88	2.13	0.75		350
21	1	CABIN	1.835	1.2	2.28		380
22	4	BOGIE	1.1	0.6	0.9	460	1840
